CZ purlin roll forming machine

C Z Purlin Roll Forming Machine

Inquire Now

INTRODUCTION

CZ purlin roll forming machine adopts the same set of equipment to produce various specifications of C/Z type bars through automatic . When changing the specifications, it is not necessary to change the shape. The production process adopts automatic control mode, which can automatically punch, cut and shape according to the input parameters such as brown strip length, longitudinal hole spacing and quantity.

C Z Purlin Roll Forming Machine

Main Parameters

Raw material of the coil

Hot rolled steel, Galvanized steel, Q195, Q235

Material thickness

1.5-3.0mm

Cutting length

adjustable

Work voltage

415V, 50Hz, 3Phase

weight

around 16 tons

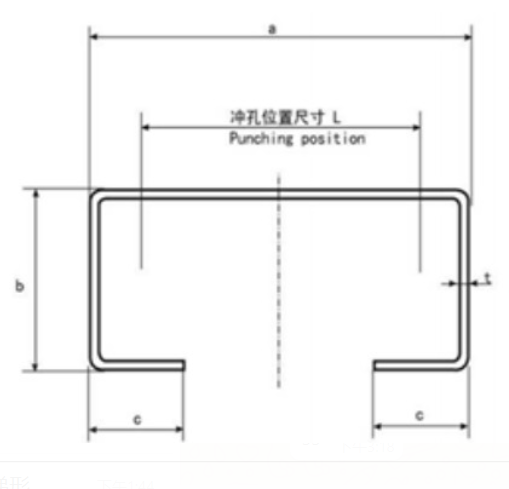

Drawing profile

C Z Purlin Roll Forming Machine





a  80-300mm



    b   40-80mm



    c   10-20mm



    t   1.5-3.0mm

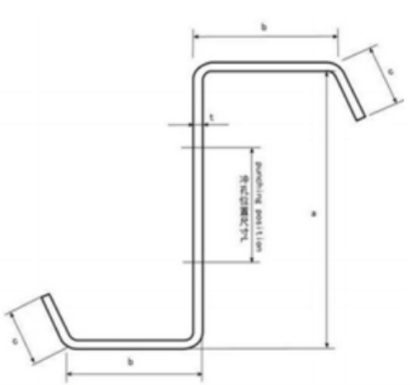

C Z Purlin Roll Forming Machine







a   120-300mm



    b   40-80mm



    c   10-20mm



    t   1.5-3.0mm

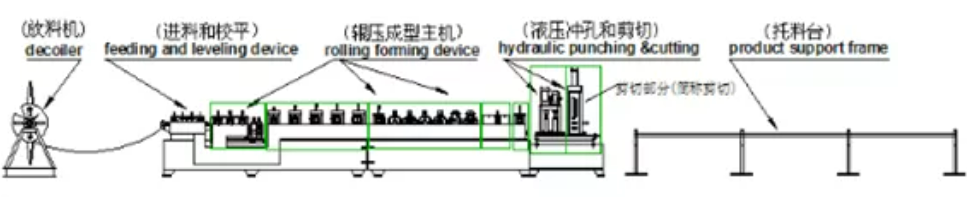

Working flow

decoiler---feeding & pre-cutter & leveling---Main roll forming machine---Hydraulic punching (4 cylinder )---Step-less cutting system---Products receiving table

C Z Purlin Roll Forming Machine

After-sales service

1. Warranty: one year, if any part damaged with the normal use, we provide new for free;

and we provide free technical support for the whole life.

2.Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD120/person/day as salary. Also need the buyer arrange some workers to help our technician for installation and commissioning.

3.The advantage of our factory: we have a team of skilled engineers and one group for after-sales service.

4.We will provide you the layout for installation in English.
